Description
The scale is suitable for garbage changing by weight, the product is using the Smart Waste Measurement System and Cloud Technology .
We can use the “Smart” Identification Scheme to collect waste and recovery data from participating buildings, including office buildings, Private residential estates and schools.
| Main Benefits: | ||

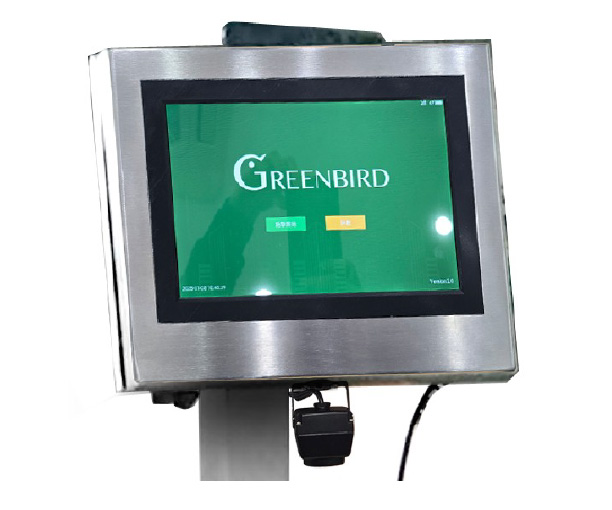

| • | Android 11 system with 10.1” color TFT-LCD display and touch screen | |
| • | Powered by Greenbird 2.0 Application | |
| • | Stainless steel 304 weigh indicator with IP65 protection | |
| • | WiFi, Bluetooth 4.2, & supports 4G LTE / GPS connectivity | |

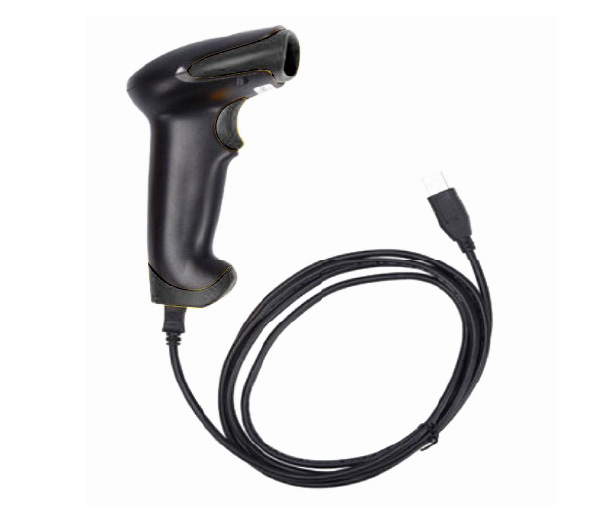

| • | USB port supports cable or wireless QR code scanner | |
| • | IP65 camera available | |
| • | USB port for CSV data export supported by USB flash drive | |
| • | High precision weighing sensor with IP67 protection | |
| • | Built-in rechargeable battery and speaker for voice functionality | |
| • | With the side way for 240L Bin | |
| INDICATOR CHARACTERISTICS | ||
| Max capacity: | 500kg | |
| Graduation: | 200g | |
| Waterproof: | IP65 | |
| Case material: | Stainless Steel 304 | |
| Display: | 10.1” color TFT-LCD | |
| Panel Interface: | Capactive Touch Panel | |
| Connectivity: | WiFi, 4G LTE/ GPS supported, Bluetooth 4.2 | |
| Processor: | RK3568 | |
| RAM: | 2G | |
| System Type: | Android 11 | |
| System Storage: | 32GB | |
| USB port: | 2 | |
| QR code scanner: | USB port for Cable & Wireless (optional) | |
| USB data output: | CSV data output via USB Flash | |
| Application: | Greenbird 2.0 | |
| Speaker: | Build-in speaker for voice function | |
| Power: | AC adapter | |
| Battery: | Build-in rechargeable battery 12V 11,000mAH (up to 9 hours) | |
| Indicator Size: | 232 x 295 x 83mm (for reference only) | |

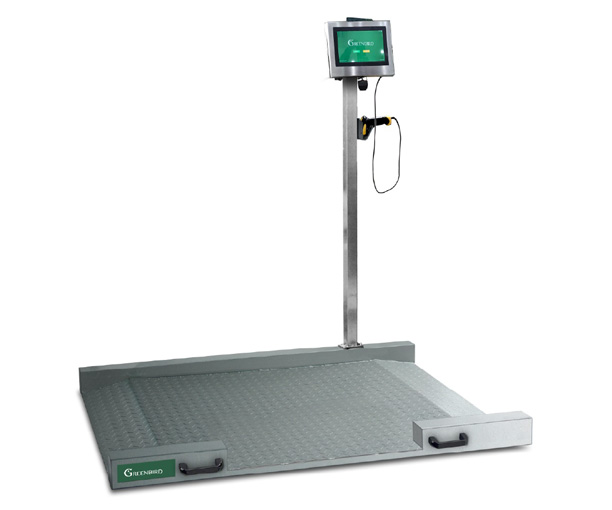

| SCALE CHARACTERISTICS | ||
| Platform size: | 1500 x 1060 mm (with rollar) | |
| Stainless steel pole: | Rectangular 50mm x 50mm | |
| Indicator supporter: | Stainless steel indicator adjustable supporter (20-90 degree) | |
| Platform finishing: | Grey powder coating | |
| Platform plate: | Anti-skid pattern | |
| Ramp length: | 20 cm | |
| Slope degrees: | 7° | |
| Bin use: | Fit for DIN EN480 bin standard | |
| Feet: | Adjustable | |
| Overall size | 1500 x 1060 x 1526 mm (for reference only) | |
